Apartment Stove Vermiculite Insulation Board Shock Resistant Fireproof

Name: Apartment Stove Vermiculite Insulation Board Shock Resistant Fireproof
Brand: Bluewind
Price: 38.00 USD

Apartment Stove Vermiculite Insulation Board Shock Resistant Fireproof Manufactures

Place of Origin : Shenzhen, China

Brand Name : Bluewind

Model Number : BWV-Baffle

Packaging Details : Plywood pallet, paper angel and stretch film wrapping

Supply Ability : 400 Square Meter/Square Meters per Day

MOQ : 50 square meters

Price : $38.00/square meters 50-399 square meters

Delivery Time : 15workdays

Warranty : 2 years

After-sale Service : Online technical support

Project Solution Capability : graphic design

Application : Apartment

Design Style : Modern

Type : Vermiculite board

Shape : Square

Material : mineral Fiber

Core Material : Glass Fiber

Name : Vermiculite board

Density : 750 kgs/m³

Thickness : 25 mm

Packing : 40 pcs per pallet

Fireproof performance : A1 Grade

Applying : Stoves & furnace

Service temperature : 1150℃

MOQ : 40 pcs

20 GP Loading : 640 pcs

Advantage : Longer Service Life

Port : Tianjin / Shenzhen

Contact Now

Vermiculite Board Fireproof Board Vermiculite Fireproof Plate

Description of Vermiculite Board

Apartment Stove Vermiculite Insulation Board Shock Resistant Fireproof

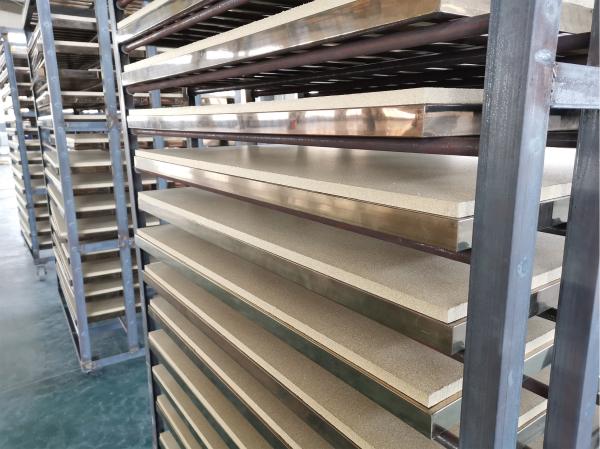

Blue Wind Vermiculite fire board is made of expanded Xinjiang silver vermiculite, and other inorganic fillers which works as binder and mixture. The board is compressed in high pressure and dried under high temperature.

Features

Excellent thermal shock resistance

Accurate and customized dimension

High crushing strength

Low thermal conductivity

Low heat storage

Excellence machining capability

Excellence service performance

	BWV-LD	BWV-Baffle	BWV-HD
SiO₂	43%	45%	55%
Al2O3	11%	12%	15%
Density (kgs/m3)	500	600-800	1200
Classification Temperature (°C)	1050	1100	1200
Cold Crushing Strength (MPa)	2.2	3.8	9.0
Modulus of Rupture (MPa)	1.0	2.6	5.0
Permanent Linear Change (%) x 24hrs	2%	1%	1%
Thermal Conductivity (W/m.k)
400°C	0.13	0.16	0.25
600°C	0.15	0.18	0.27
800°C	0.17	0.20	0.29
