1000x610mm Furnace Insulation Board , Durable Fire Retardant Board For Fireplaces

Name: 1000x610mm Furnace Insulation Board Durable Fire Retardant Board For Fireplaces
Brand: Bluewind
Price: 19.00 USD

1000x610mm Furnace Insulation Board , Durable Fire Retardant Board For Fireplaces Manufactures

Place of Origin : Shenzhen, China

Model Number : BWV-Baffle

Brand Name : Bluewind

Packaging Details : Carton packing for sample orders, pallet packing for bulk order

Supply Ability : 10000 Piece/Pieces per Month

MOQ : 100 pieces

Price : $19.00/pieces 100-799 pieces

Delivery Time : 15workdays

Shape : Plate

Material : Vermiculite, Vermiculite

SiO2 Content (%) : 46%

Al2O3 Content (%) : 14%

MgO Content (%) : 14%

CaO Content (%) : 2%

Refractoriness (Degree) : Common (1580°< Refractoriness< 1770°)

Processing Service : Cutting, Moulding

Application : Fireplace Accessories

Function : Fireproof and decoration

Product name : Fireproof baffle board

Size : 1000*610 mm

Thickness : 20 mm

Unit weight : 9.2 kgs

Package : paper carton or wood carton

Custom size : Acceptable

Surface : Smoth

Port : Shenzhen

Contact Now

1000*610 mm vermiculite fire board for wood stove and fireplace fire resistant

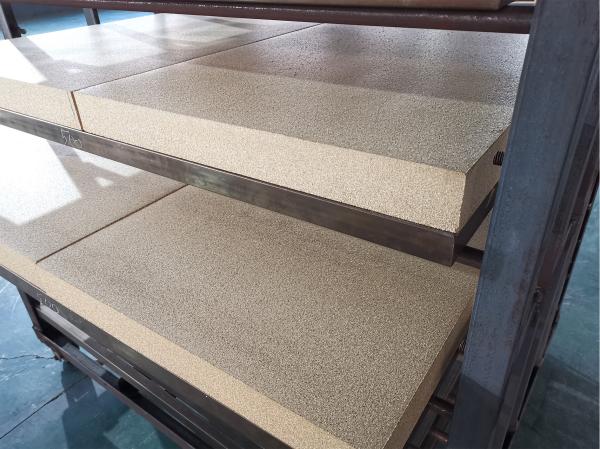

Description of Vermiculite Board

BWV Vermiculite board

BWV vermiculite board

Use Xinjiang Silver vermiculite ore, after high temperature heating, expanded 6-12 times as the material size, with excellent insulation and refractory performance. With unique technology, make it good strength and insulation performance for industrial energy saving and emission reducing applying.

1000x610mm Furnace Insulation Board , Durable Fire Retardant Board For Fireplaces

Features

Refractory: Up to 1200 °C fire/heat resistant

High thermal shock resistant, can be used on fire side;

Non combustible

Thermal/ Heat insulation: Low thermal conductivity <0.3 W /m.K @ 1,000 Celsius degree

Density range: 0.4-1.2 g/cm³

Chemical resistant;

High mechanical strengths;

Easy for secondary tooling and machining

Environmental friendly

Applying

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Blue Wind Vermiculite refractory and insulation boards apply 0.3-1 mm expanded silver vermiculite as the raw material, with inorganic adhesive and cold pressing technology combined, after hours drying that made the good strength fireproof insulation boards.

For serving under severe conditions, vermiculite boards have excellent mechanical strength, good resistance to thermal spalling, and are highly resistant to chemical attack by vilatile alkaies and some slag.

Stoves applying

For stoves application, it requires lightweight and good fireproofing performance, as well as thermal shock resistance. The vermiculite boards owns the all benefits and plays an important role in the stoves applying especially in wood stoves and pellet stoves. And our BWV-Baffle series vermiculite boards, fit the stoves and fireplaces applying, which can cut into required size or machining into custom design. Also, for some bulk order we can offer moulded producing for better appearance and function.

Heat cell

Heat cell is the heart part of the condensing boiler, it determines the service life of the condensing boiler.

Vermiculite boards with 1200 C can resistant the extremely environment which fast drying and water soaking; has better performance than the traditional ceramic fiber boards.

Condensing boiler

Condensing boilers ideal service life is about 12-15 years, while the heart part heat cells determines whether it can or can not to reach the ideal life. With high quality vermiculite boards, it can reduce the times of heat cells replacement and bring the user less troubles.

Aluminum Electrolytic Cells

The V-1100 and V-1200 are recommended for the applying of Aluminum electrolytic cells. Their high strength and low thermal conductivity make them ideally for the applying of the industry. Various combinations of bulk density, insulation properties and compressive strength, commonly V-1100(500), V-1100(1000), and V-1200 are chosen for the excellent performance in strength and thermal insulation performance.

And the another important feature in the Aluminum Electrolytic cells is that the V-1100 and V-1200 series do not corrosion by the molten aluminum and are resistant to cryolite penetration and fluorides. It helps to maintain the cells service life and keep the better running of the aluminum electrolytic processing.

Wood stoves

Wood Stove and Fireplaces fireproof boards

Bluewind vermiculite fire resistant and insulation board, applied in wood stoves and fireplaces, make the stoves better working and more safer for the user.

Sizes: Private cutting or machining, molded parts etc.

Thickness: 10-50 mm applied

Density: 0.6-0.9 g/cm³ ( recommend 0.75 as medium)

Service life: 3-5 years

Advantages: small bending even for long years using( <2 mm)

Production Process

Pressing

High pressure mould pressing to form the shapes required

Drying

Drying for release the water contained and form the stable applying

Quality checking

For each unit we have one by one checking to ensure the end using.
